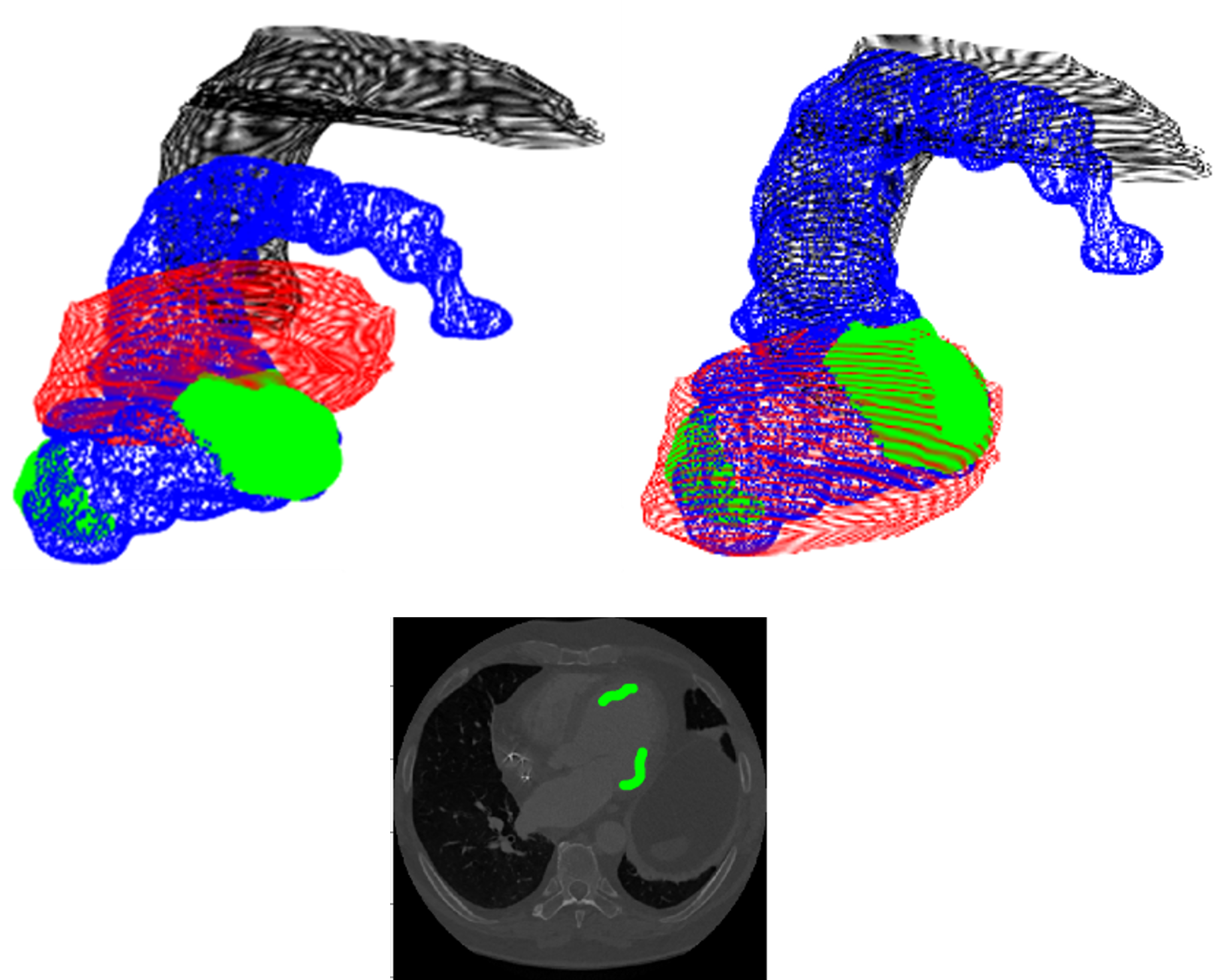

The 3D-3D registration method is EAM-system-dependent, and the following EAM systems are supported by CARDIO-RT 3D-3D registration method.
- CARTO 3 (Biosense Webster)
- EnSite Precision/Velocity (Abbott)
- RHYTHMIA HDx (Boston Scientific)
The data required for 3D-3D registration method are as follows.
- Electrophysiological data exported from the EAM systems, and the format of the EAM data is depending on the EAM system.
– CARTO: .mesh file and _car.txt file
– EnSite: .xml file
– RHYTHMIA: .mat file
Please note that due to the inconsistency of the data format between different EAM systems and different versions, the EAM data might not be compatible with CARDIO-RT. In this case, please contact the developers to extend the functionality of CARDIO-RT to read your EAM data. - DICOM-RT Structure Set file containing the heart structures (i.e., LV, aorta, etc.)
- Cardiac CT which is registered with the planning CT, or the non-registered cardiac CT with the corresponding DICOM RE registration file
- Planning CT
- (Optional) DICOM-RT dose distribution file
For more detailed information, please see the user manual which is included in the downloaded file.
